Rubber track 230 x 101 x 31 HINOWA DM15 PT15G VT1550 VT1650

  • 1
  • 2

Brand Name : POOYERT

Model Number : 230 x 101 x 31

Certification : ISO9001:2000

Place of Origin : SHANGHAI

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 Pieces per month

Delivery Time : 10-20 days

Packaging Details : Wood pallet or Container depends on the quantity

Product name : Rubber Crawler

Wide : 230mm

Pitch : 101mm

Links : 31

Market : World

Color : Black

Technology : Continuous with joint free

Weight : 60kg

Contact Now

Rubber track 230 x 101 x 31 HINOWA DM15 PT15G VT1550 VT1650




1.Product Information

1.Name of commodity Rubber Track 230 x 101x 31 for mini excavators
2.Width 230mm
3.Pitch 101mm
4.Links 31
5.Total Length 3131mm
6.Weight 60kg
7.Material Rubber & Steel
8.Steel cord type Continuous inner steel cord with joint free
9.Warranty Guarantee one year under normal use





2.Application

Brand Original Size POOYERT Size1 Roller POOYERT Size2 Roller
E1500 (EUROCOMACH) 230x101x31 230x101x31 B1 230x96x32 B1
DM15 (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1
DM15M (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1
PT15G (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1
VT1550 (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1
VT1650 (HINOWA) 230x101x31 230x101x31 B1 230x96x32 B1

Rubber track 230 x 101 x 31 HINOWA DM15 PT15G VT1550 VT1650

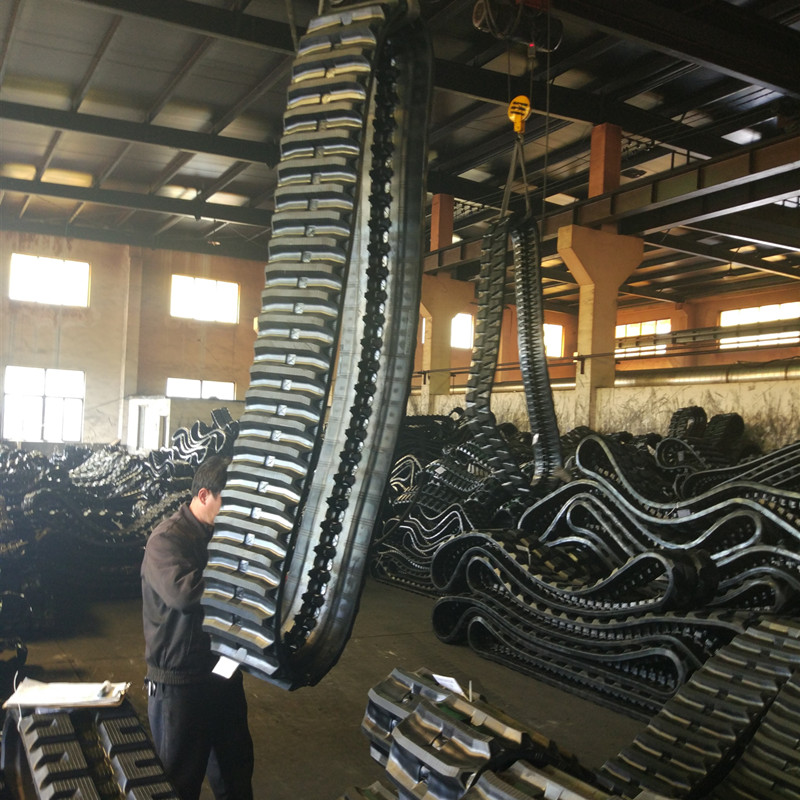

3.Production process



Raw Material: Natural rubber / SBR rubber/ Kevlar fiber / Metal / Steel cord

Step: 1.Natural rubber and SBR rubber mixed together with special ratio then they will be formed as

rubber block

          2.Steel cord coverd with kevlar fibe

          3.Metal parts will be injected with special compounds which can improve their performance

          3.The rubber block , kevlar fiber cord and metal will be put on the mould in ordered

          4.The mould with materials will be deliver in to the big production machine, the machinery use high

temperature and high volume press to make all the material together.



Rubber track 230 x 101 x 31 HINOWA DM15 PT15G VT1550 VT1650Rubber track 230 x 101 x 31 HINOWA DM15 PT15G VT1550 VT1650

Rubber track 230 x 101 x 31 HINOWA DM15 PT15G VT1550 VT1650

Rubber track 230 x 101 x 31 HINOWA DM15 PT15G VT1550 VT1650

4. Packing

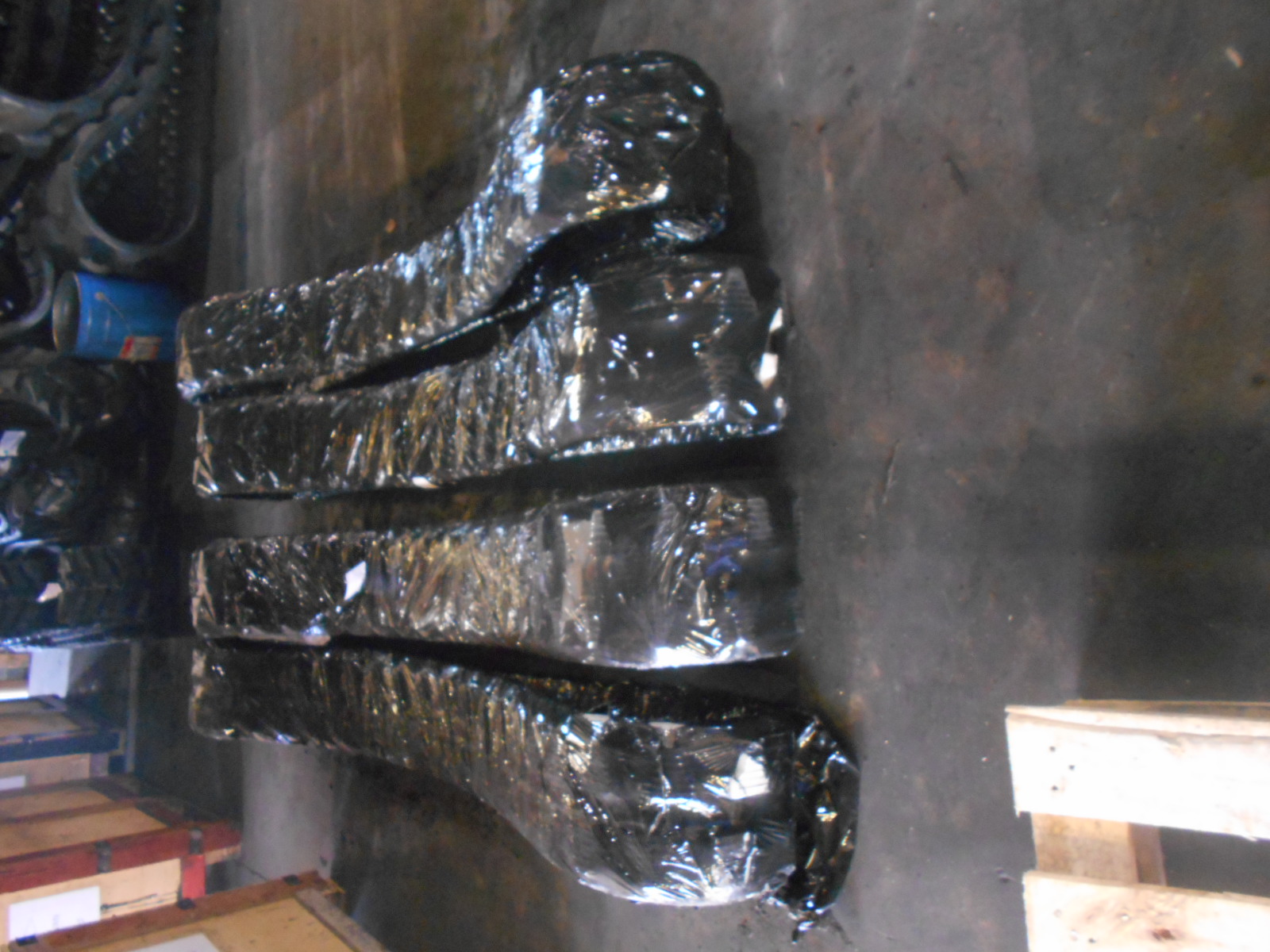

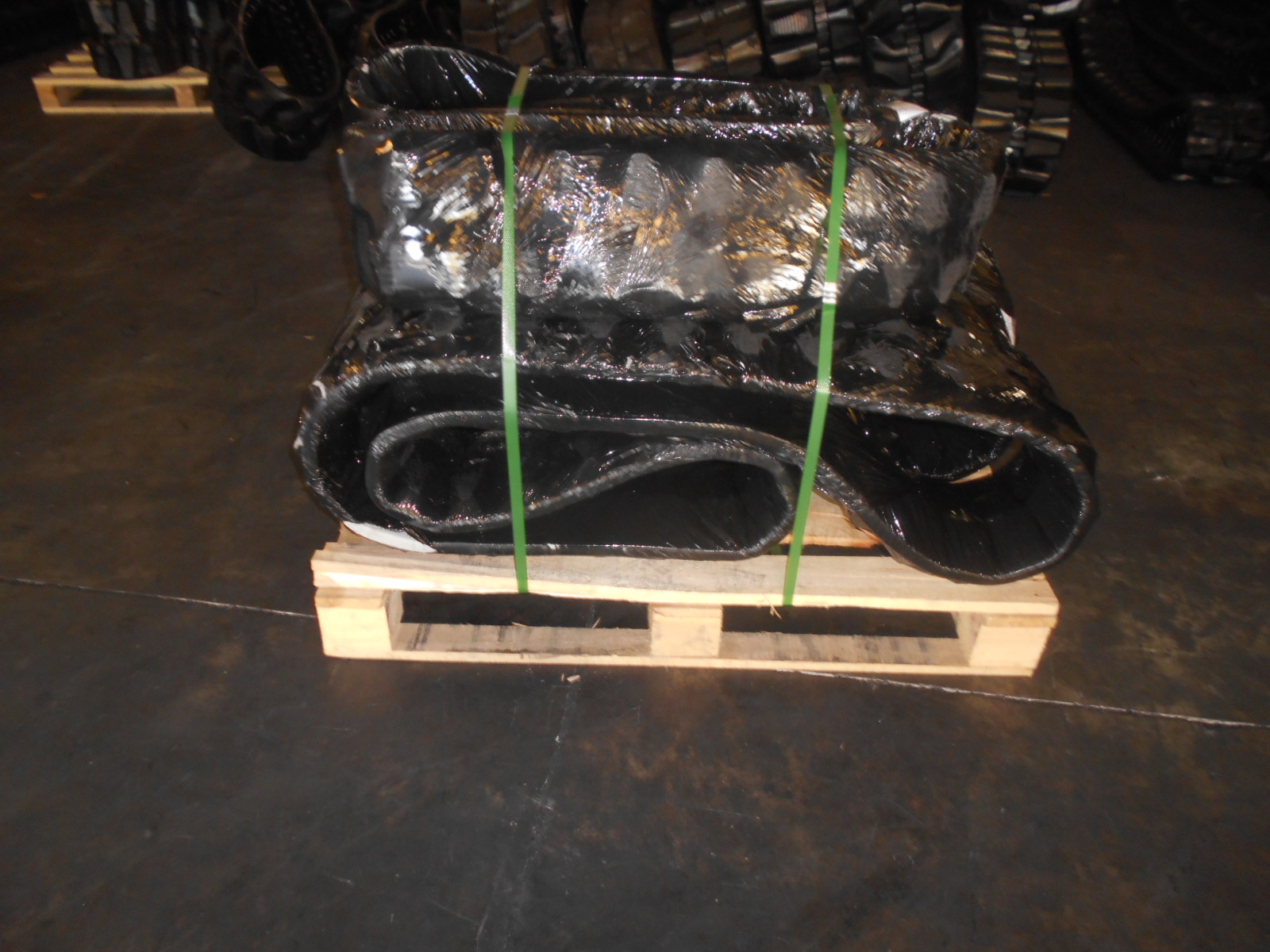

The goods will be packed by wrapping film then bundle on the wooden pallet by strong rope in order to make sure the safe transportation.Rubber track 230 x 101 x 31 HINOWA DM15 PT15G VT1550 VT1650

Rubber track 230 x 101 x 31 HINOWA DM15 PT15G VT1550 VT1650

5.Parameter for more size

Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links
130*72 28-53 300*52.5K 72-84 400*72.5KW 68-92
150*60 28-49 300*52.5KW 72-92 400*74 68-76
150*72 29-40 KB300*52.5 72-92 400*75.5K 74
170*60 30-40 KB300*52.5N 72-98 B400*86 52-55
180*60 30-40 JD300*52.5N 72-98 400*90 42-56
180*72 30-58 300*53K 80-84 Y400*142 36-37
180*72K 30-37 300*55 70-86 400*144 36-41
B180*72K 34-51 300*55.5K 76-82 Y400*144K 36-41
B180*72A 30-51 300*71K 72-55 420*100 50-58
H180*72 30-50 300*109N 25-42 450*71 76-88
190*60 30-40 K300*109 37-41 DW450*71 76-88
190*72 34-39 300*109WK 35-42 450*73.5 76-84
200*72 34-47 B300*84 78-52 450*76 80-84
200-*72K 37-47 T300*86K 48-52 450*81N 72-80
230*48 60-84 320*52.5 72-98 450*81W 72-78
230*48K 60-84 B320*52.5 68-98 KB450*81.5 72-80
230*72 42-56 320*54 70-84 K450*83.5 72-74
230*72K 42-56 B320*86 49-52 B450*84 53-56
230*96 30-48 320*90 52-56 B450*86 52-55
230*101 30-36 320*100 38-54 450*90 58-76
250*47K 84 320*100W 37-65 KU450*90 58-76
250*48.5K 80-88 Y320*106K 39-43 T450*100K 48-65
250*52.5K 72-78 350*52.5 70-92 K450*163 38
250*72 47-57 350*54.5K 80-86 485*92W 74
B250*72 34-60 B350*55K 77-98 500*90 76-82
B250*72B 42-58 350*56 80-86 500-92 72-84
E250*72 37-58 350*75.5K 74 500*92W 78-84
250*96 35-38 350*90 42-56 500*100 71
250*109 35-38 350*100 46-60 K500*146 35
260*55.5K 74-80 350*108 40-46 600*100 76-80
Y260*96 38-41 350*109 41-44 600*125 56-64
260*109 35-39 Y370*107K 39-41 700*100 80-98
280*72 45-64 400*72.5N 70-80 750*150 66
Y280*106K 35-42 400*72.5W 68-92 800*125 80
300*52.5N 72-98 Y400*72.5K 72-74

6.Company introduction

Our firm established in 2000, with almost 20 years production and administration experience. With register capital around 2 billion yuan. Through 18 years develop, our company has producted various rubber tracks and related rubber product for our clients. Our goods share with good quality and exported to more than 100 countries and region.
